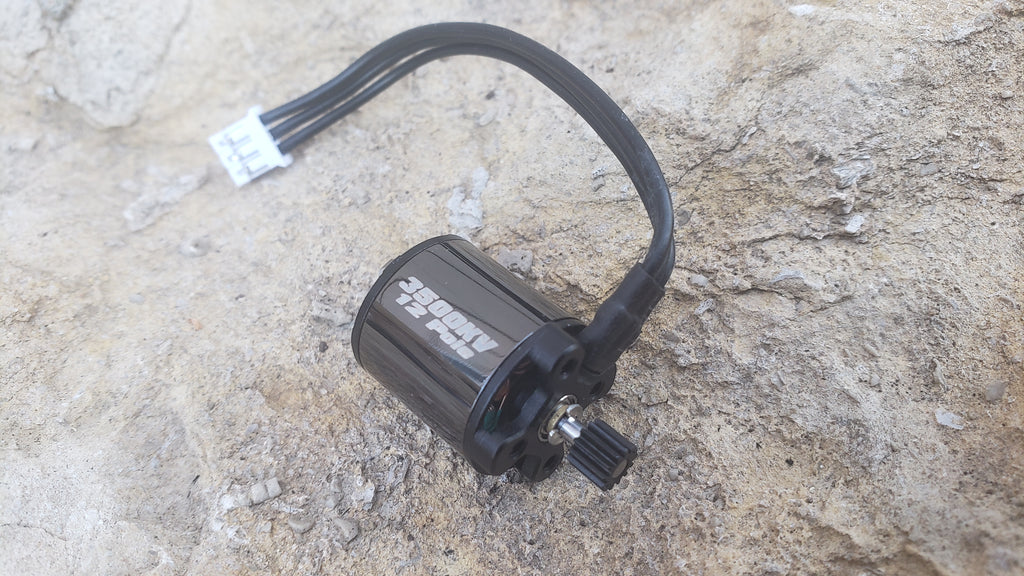

The Dinky R/C "Stink Bug" 3500kv outrunner has it where it counts, in both size and performance!
This tiny power house is 2s-3s lipo capable, and pairs very well with our 25amp D-Drive Micro V2 Pro ESC's!
Modulation is powerful and silent in Sine mode, with ample strength to transition into trap mode, even on a 2 cell lipo.
Lightweight and compact, the "Stink Bug" brushless outrunner weighs in at only 15.5 grams.
It fits in where you need it at only 20.5mm long, with a 15.8mm diameter rotor.
Pre-installed .3 pitch 13t pinion gear is included, and is CNC machined from high-strength wear-resistant Chrome Steel for long-live and smooth tooth engagement.
Every motor is thoroughly inspected and tested before shipping, to ensure function and fitment.

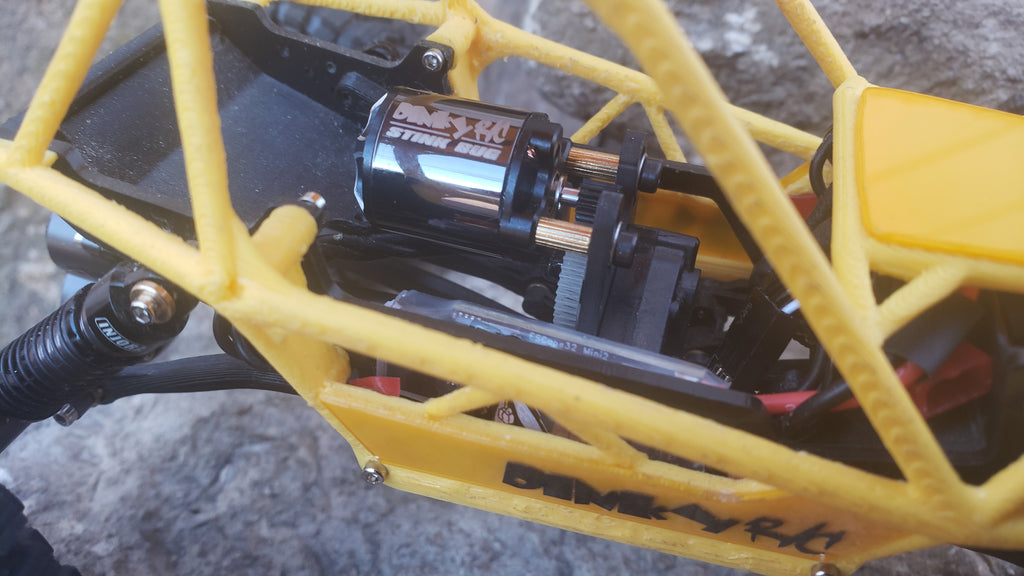

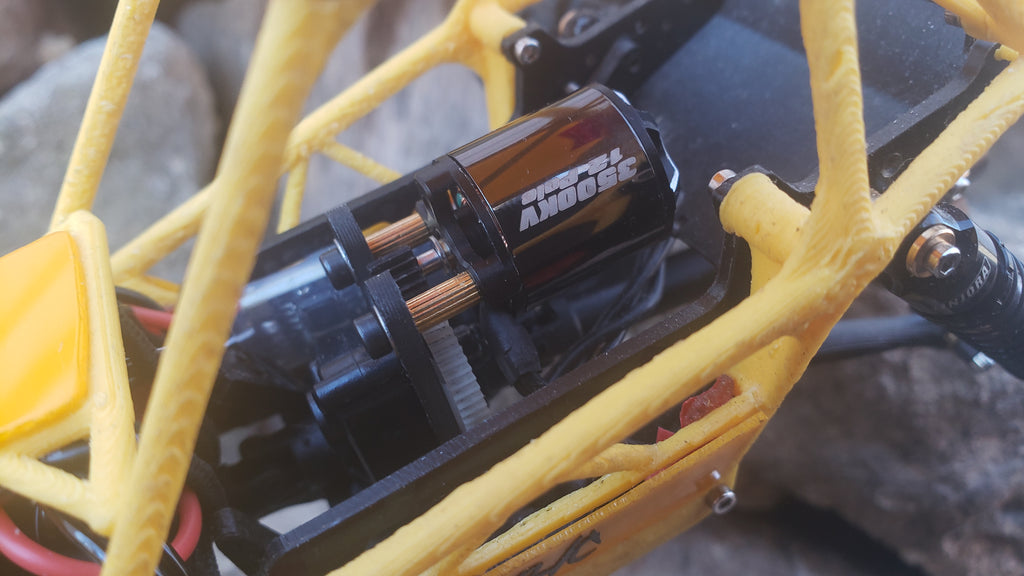

Setting you up for success when installing in your vehicle!
Choose the "Add Motor Plate" option to make it a combo for only $5 more!
Features
3500KV gives plenty of top-end RPM's on 2s or 3s, while providing enough torque at the bottom to handle both comp & trail rigs.
12 pole High-torque design offers precise control and power density for "cog free" operation in both Sine & Trap mode.
CNC machined from 6061 T6 aluminum for strength and long-lasting durability.
Precision balanced rotor ensures smooth, vibration free modulation thru entire range of RPM.
Anodized black on black chrome finish for good looks, and anti-oxidizing properties.

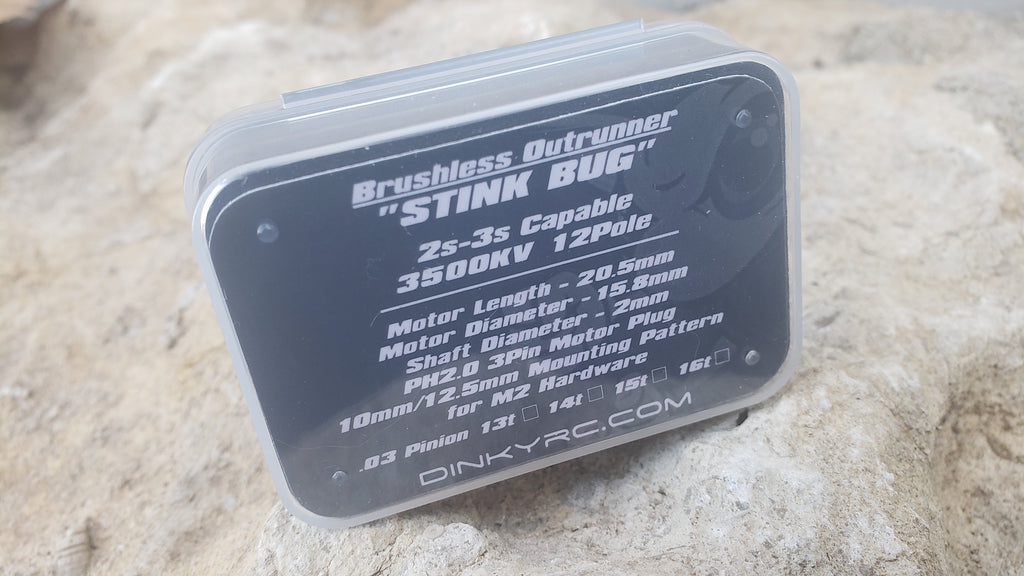

Specs and Dimensions
Rpm/Volt - 3500KV
Pole count - 12 pole / 9 slot
Voltage - 2s-3s lipo capable
No load current (A/7.4v) - <0.7A
Internal resistance - 180m ohm +/- 3%
Mounting pattern - 10mm x 12.5mm(fits slotted 12mm motor mounts)
Mounting hardware - M2 thread x 3mm deep
Idle speed (RPM/V) - 25,900/7.4V - 38,850/11.1v
Shaft Diameter - 2mm
Motor Diameter & Length - 15.8mm / 20.5mm L
Weight - 15.5 grams
Wire harness - 22 gauge
Wire length - 75mm
Connector - Ph2.0 3pin
Includes
(Motor ONLY)

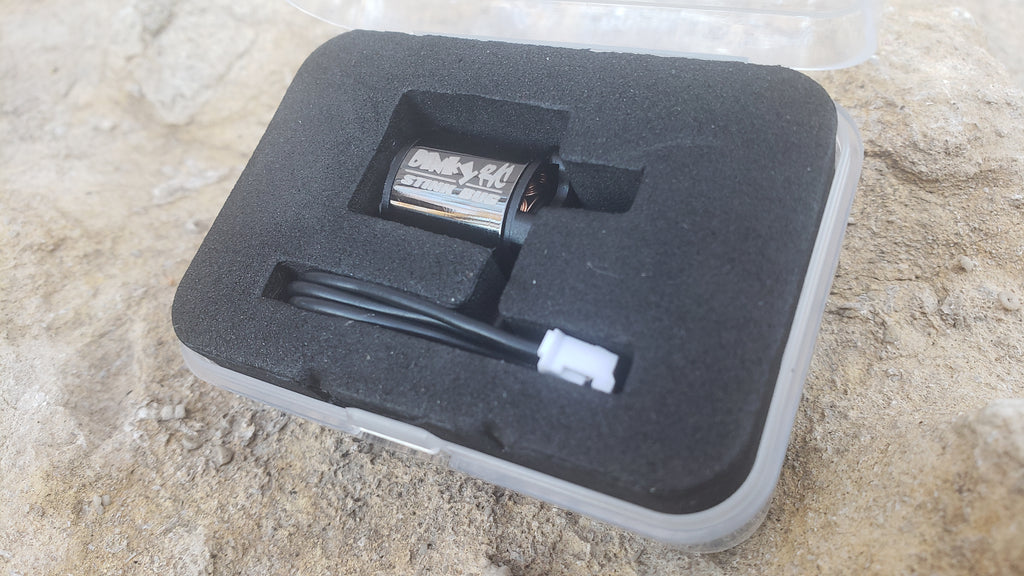

1 X "Stink Bug" brushless motor
2 X M2 x 5mm cap head hardware
2 X 2mm Stainless steel washers
1 X Pre-installed .3 pitch 13 tooth pinion gear
1 X Dinky R/C Mini Decal Sheet
Included w/ Combo
All the above ^^^
1 X 2mm Carbon fiber motor plate(12.1mm pattern)
2 X M2 6 + 3mm Brass stand-offs
