"Ryukin" 1.9 Mini Class Competition Chassis


$ 60.00




Share this product


The "Ryukin" 1.9 Mini Class Competition Chassis is designed to transform
your ECX Temper Gen2 mini rock crawler into a more capable, competition driven machine!
It's unique styling is inspired by nature itself, accentuated by the lines of ornamental "Ryukin" Goldfish,
helping you Flow thru your next comp course!
Along with adjustable suspension geometry and setup options,
it will give you comp winning performance well beyond what the stock platform will provide.
Our "Ryukin" fits all current WRCCA specifications, with the optional upper and lower link set,
bringing your wheelbase from the stock 9.5" to 8.5".

Another Unique feature to our "Ryukin" Chassis is the fact that you can run it in either direction.
As you can opt for the "Buggy" style, or "Truggy" style.

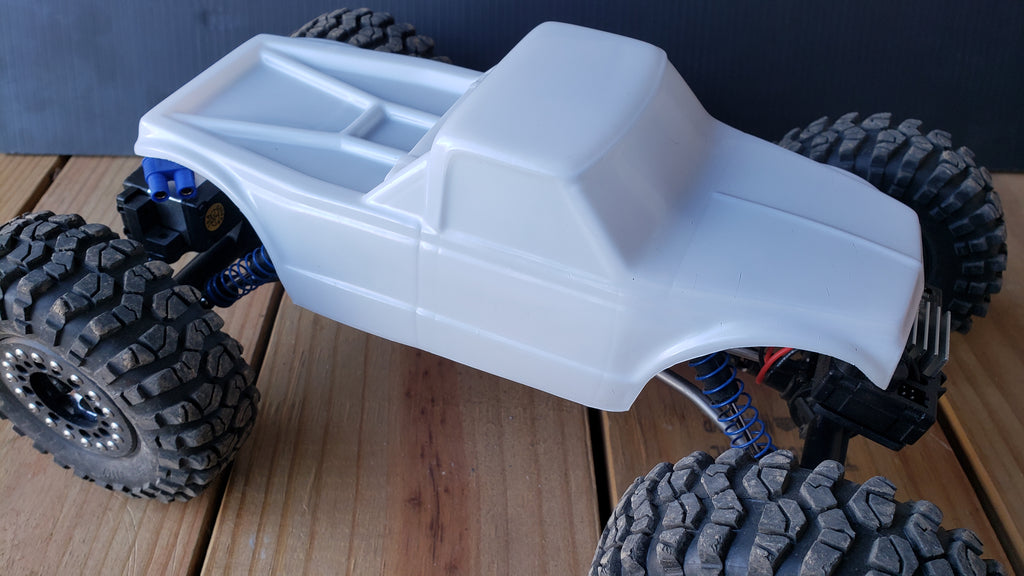

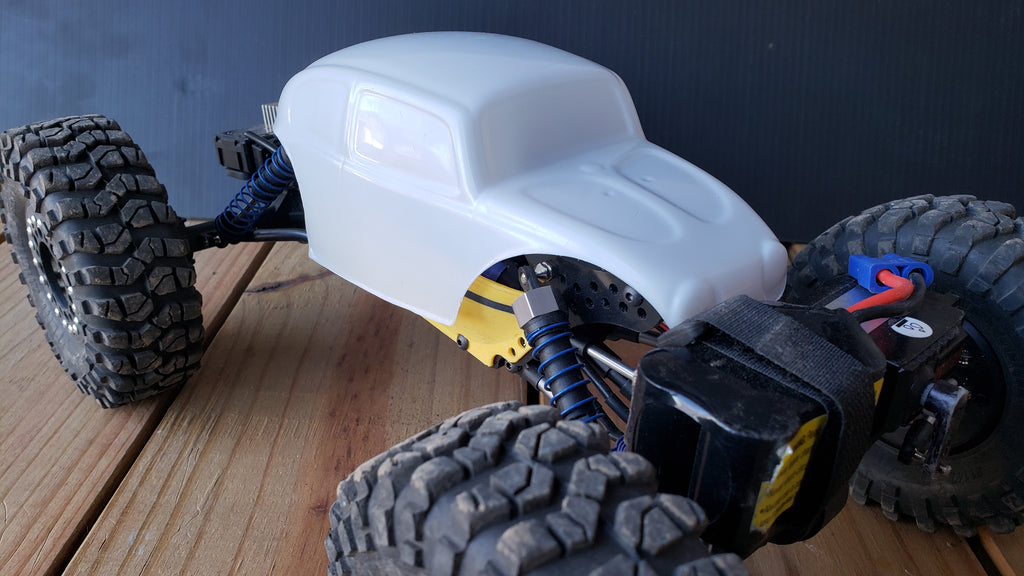

Which can also help when you choose to SLAM that comp body as low as possible!

Suspension geometry is identical front to rear, centered from the Delrin skid plate.
And most all of the shock mounting locations are symmetrical as well,
except where we could add a few more, to suit your choice of shocks.
We recommend choices from the stock 85mm, to aftermarket 60mm shocks, pending your setup.

A few option packages are available, please read carefully to select the best option to suit your needs!

Don't forget, we can also include our OTA "Batt-Tray" in a Combo, which will allow you to install your battery on the front axle,
while gaining more approach angle when driving thru your next set of gates!

The "Chassis only" kit :
2 -  CNC machined 1/8" Delrin Chassis plates,
1 - CNC Machined Delrin Skid Plate
4 - 1/4" Delrin Cross-members
1 - All necessary hardware to assemble the basic chassis
(This kit is aimed at users that would prefer to build their own upper and lower links)


The "Chassis Kit w/Link Set" :

2 -  CNC machined 1/8" Delrin Chassis plates
1 - CNC Machined Delrin Skid Plate
4 - .25" Delrin Cross-members
4 - 1/8" 6061 Aluminum upper links with Traxxas ball-ends (4/chassis side)
4 - CNC Machined Delrin High-clearance lower links with Traxxas ball-ends (4/chassis side)
1 - All necessary hardware to assemble the basic chassis and attach link set


The "Bodiless Chassis Kit w/Link Set" :

2 -  CNC machined 1/8" Delrin Chassis plates
1 - CNC Machined Delrin Skid Plate
4 - 1/8" 6061 Aluminum upper links with Traxxas ball-ends (4/chassis side)
4 - CNC Machined Delrin High-clearance lower links with Traxxas ball-ends (4/chassis side)
5 - 3d Printed ABS Body Panels Available in multiple solid colors (See below)
1 - All necessary hardware to assemble the basic chassis and attach link set


The "Chassis Kit w/Link Set plus OTA Batt-Tray COMBO" :
2 -  CNC machined 1/8" Delrin Chassis plates
1 - CNC Machined Delrin Skid Plate
4 - .25" Delrin Cross-members
4 - 1/8" 6061 Aluminum upper links with Traxxas ball-ends (4/chassis side)
4 - CNC Machined Delrin High-clearance lower links with Traxxas ball-ends (4/chassis side)
1 - All necessary hardware to assemble the basic chassis and attach link set
1 - Over The Axle Steering Kit + Battery/Servo Relocation Kit


The "Bodiless Chassis Kit w/Link Set + OTA Batt-Tray COMBO" :
2 -  CNC machined 1/8" Delrin Chassis plates
1 - CNC Machined Delrin Skid Plate
4 - 1/8" 6061 Aluminum upper links with Traxxas ball-ends (4/chassis side)
4 - CNC Machined Delrin High-clearance lower links with Traxxas ball-ends (4/chassis side)
5 - 3d Printed ABS Body Panels Available in multiple solid colors (See below)
1 - All necessary hardware to assemble the basic chassis and attach link set
1 - Over The Axle Steering Kit + Battery/Servo Relocation Kit



Available colors for Bodiless panels currently:
Black, White, Yellow, Green, Red, Gold, Baby Blue, Gray, Orange, Pink, Purple
Please choose Bodiless Color in your "customer notes" during purchase.



Wheels, tires, axles, transmission, and electronics are NOT included

Please allow 3-5 business days for processing
