"D-Drive" Mini Sport 45amp ESC


$ 72.50



Click here to be notified by email when this product becomes available.


Share this product

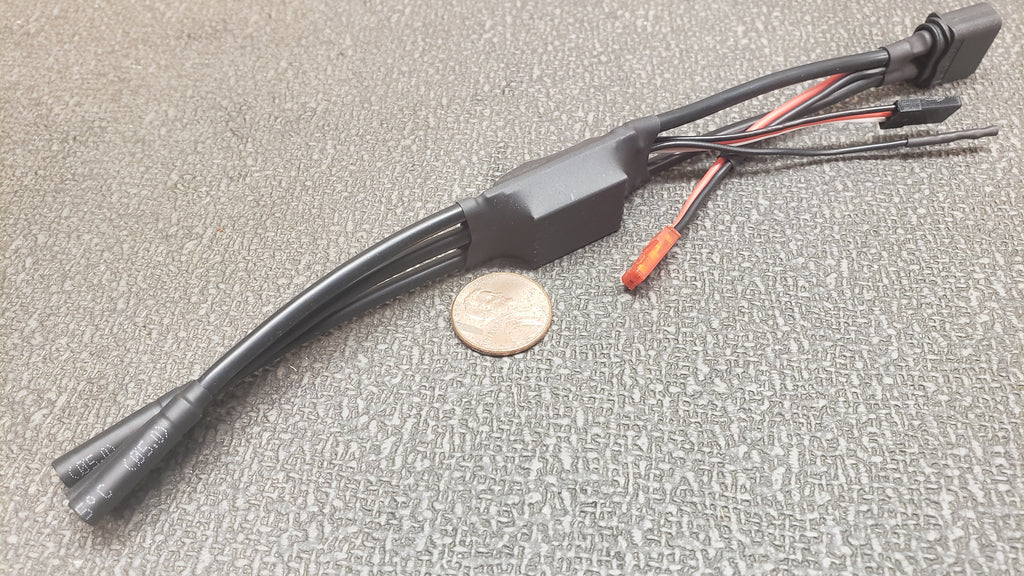

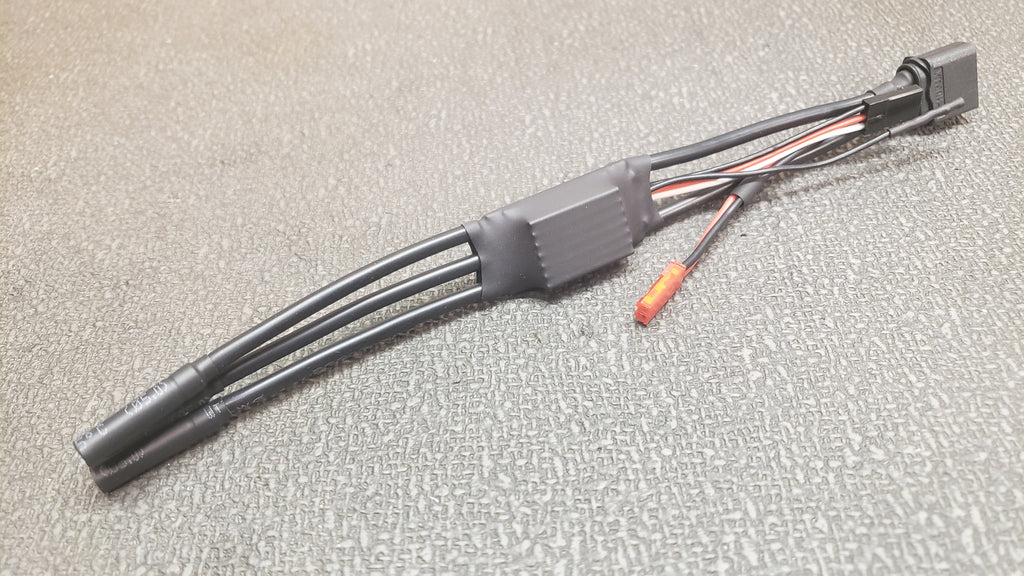

New "D-Drive" Mini Sport ESC, Available now!

This new 45amp ESC is aimed to fill the need for a more "plug'n play" option,
for those looking towards getting into the realm of opensource firmware.
While still being reasonably priced, and ready to roll, with the addition of the available "pre-tune" when ordering,
Just leave us a note during checkout!

Suitable for 1/18th -1/10th scale crawlers, such as Axial UTB18 Capra, "Class 2" style Comp Rigs,
and light to medium weight Scale Vehicles (6-10lbs).

These will also fit well for most 1/18th scale "go fast" types of vehicles,
such as the Losi Mini-B/T, Axial Maverick, and other similar "T-Brand" vehicles using sensorless brushless motors.
By Simply selecting the "Basher type" mode in the programmer, you'll change the throttle profile to "forward/brake/reverse",
giving you everything you need to rip up your favorite bash/race spot.

Please Note:
We suggest using a Castle Creations 10amp BEC, or similar, for powering your Rx and servo needs.
We do offer a 3amp Micro BEC that is adequate for powering your Rx ONLY, if you choose to use the JST power output for a direct power servo.
(Please "contact us" before your purchase if you'd like any special wiring preferences to accommodate this,
and we can add an second JST lead for an additional charge)

      Specs

  • 18th - 10th scale compatible
  • AM32 & "??????32" Opensource Firmware options
  • 45amp Continuous - 80amp Peak
  • 2-6s capable
  • BEC/Direct power servo connection w/JST plug
  • Plug n' Play w/XT60
  • 4mm Motor Plugs - Female installed, Males included)
  • 14g silicone wire - Motor & Battery leads
  • Male XT60, JST, & 4mm motor plugs(x3) are included for your convenience.
  • Overall Dimensions: (L) 40mm x (W) 18mm x (H) 5mm
  • Personalized costumer service and setup assistance, to make sure you're rig gets up and running, and is tuned to your liking.


Please leave us a note during checkout if you'd like us to setup a "pre-tune" for you, with your brushless motor KV and pole count.
This will allow us to set these parameters during programming for you, for better performance!

Additionally, we highly suggest purchasing our Am32 Programmer, in order to fully optimize your setup and gain access to all tuning parameters.
