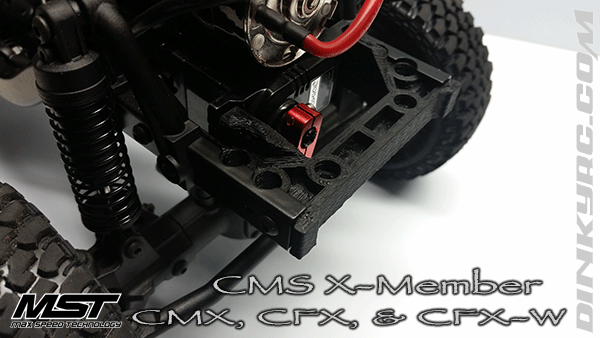

The Dinky R/C chassis mounted servo kit allows you to move your steering servo from your axle, to your chassis for a more scale-realistic look.
Designed to fit the complete line-up MST crawlers,
including the CMX, CFX, and CFX-W.
When using this kit, it is recommended to move your steering and drag links to the upper side of your steering knuckles.
Which in-turn, increases your clearance/approach angle of your axle case, giving you another bit of added clearance.
(New orientation shown below)
This CMS kit allows for full cycling of your suspension system, with no binding.
3D Printed from ABS
Hardware is NOT included.
Stock Steering-link CAN be re-used.
Re-use of your existing hardware to mount to your frame.
Servo must be attached to the CMS Bracket BEFORE installation.
Servo Bolts attach from the opposite side than what would be normal.
You will need four 8mm x 3mm pcs. of hardware to mount the servo to complete your assembly process.
(Existing servo mount bolts cannot be used.)
***Also available in Digital Download***
By purchasing this file, you are accepting the terms and conditions of the licensing for these files.
This work is licensed under
PERSONAL USE - NO DERIVATIVES LICENSE
Summary - No Sharing. No Selling. No remixing to share/sell. Print at Home or Work for personal use.
I have provided these STL's for your personal use and enjoyment, and so that you may re-print them if you ever incur breakage of the printed part. I believe in encouraging individuals creativity, with parts that can be made and enjoyed from the comfort of their own home.
You are permitted to print or produce these works in any media that you like for your own personal use. You are permitted to have the files produced by any shop or individual of your choosing if you are unable to do so yourself.
What if a friend wants me to print one for them? If a friend would like you print a file for them, please have them purchase the STL prior to printing it for them. These designs take a lot of time and money to develop and I appreciate your support and integrity.
